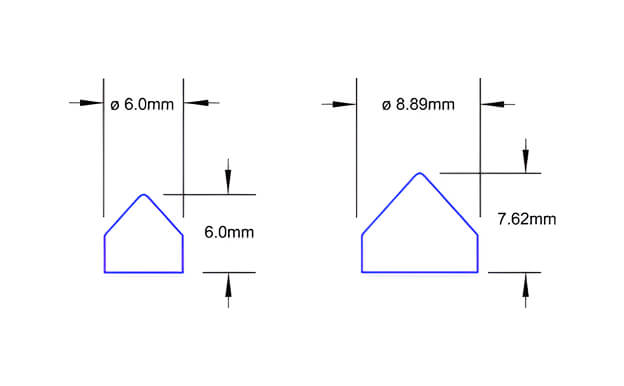

Dimensions:
Please consult individual lens drawings for detailed dimensions.

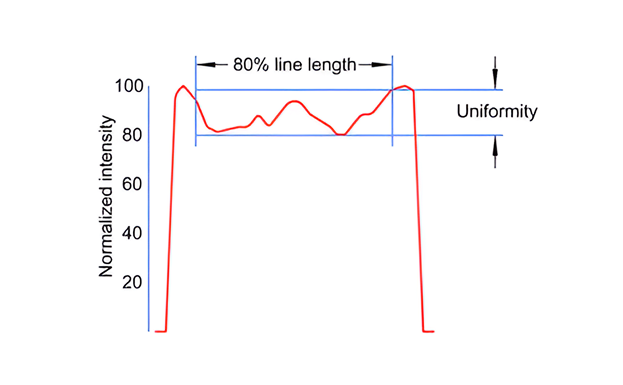

Line uniformity:
Maximum 30% total variation in line intensity measured over the central 80% of line length.
Contained Power:
80% ±5% over central 80% of line.
Fan Angle:
± 3% Consult drawings for detailed tolerances
Boresight:
< 4mrad
Line straightness:
< 0.1% deviation over central 80% of line length
Substrate:
N-BK7 or S-TIH6 RoHS Directive 2002/95/EC Compliant
Coatings:
By request, minimum quantities apply.
